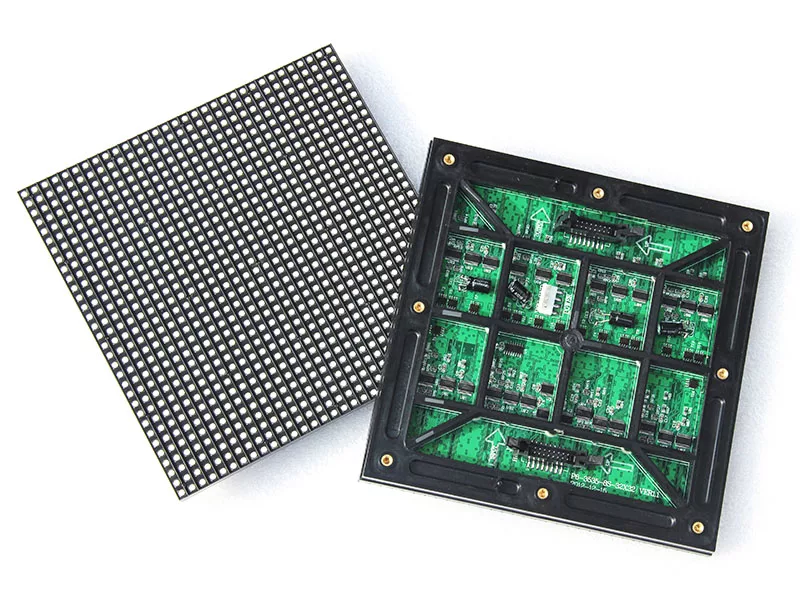

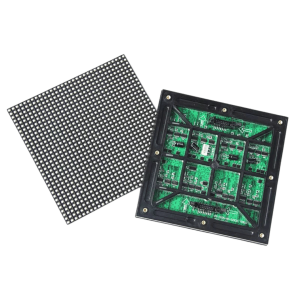

BIA Outdoor SMD Screen Module

High Quality Components make products safer
Pixel by pixel correction technology
More detailed display technology
HUB75 Generic I/F Control Esily
≥100% NTSC color gamut
Unified module size, be widely used
160° wide viewing angle for more applications
Adjustable Color temperature and brightness
Durable, and hugh installation accuracy

BIA Outdoor SMD Screen Module

Description:

The BIA Outdoor SMD Screen Module is engineered to withstand the rigors of outdoor environments while delivering breathtaking visuals that captivate audiences. Built to endure harsh weather conditions and maintain optimal performance, this module is the ultimate solution for outdoor signage and display applications.

Key Features:

Weatherproof Design: Designed specifically for outdoor use, the BIA LED Screen Module is weatherproof, ensuring reliable performance in rain, snow, heat, and other adverse conditions.
SMD LED Technology: Equipped with Surface-Mount Device (SMD) LEDs, this module delivers vibrant colors, exceptional brightness, and uniform illumination for superior visibility even in broad daylight.
High Brightness: With high brightness levels, the BIA module ensures excellent visibility, making it perfect for outdoor advertising, stadium displays, roadside billboards, and more.
Wide Viewing Angle: The module offers a wide viewing angle, ensuring consistent image quality and clarity for viewers from various vantage points.
Energy Efficient: Despite its powerful performance, the BIA Outdoor SMD Screen Module is energy-efficient, reducing power consumption and operational costs.
Robust Construction: Built to last, this module features a rugged construction that can withstand outdoor elements and resist damage from impacts and vibrations.
Easy Maintenance: Designed for easy maintenance, the BIA module allows for quick and hassle-free servicing, minimizing downtime and ensuring continuous operation.
Customizable Solutions: With customizable options available, including pixel pitch, module size, and resolution, the BIA Outdoor SMD Screen Module can be tailored to suit specific outdoor display requirements.

Applications:

Outdoor Advertising
Stadium Scoreboards
Roadside Billboards
Transportation Hubs
Outdoor Events and Concerts
Public Information Displays
Theme Parks and Attractions
Architectural Lighting

Certifications:

CE
RoHS
FCC
IP65 (or appropriate outdoor rating)

Warranty:

The BIA Outdoor SMD Screen Module comes with a 1 year warranty, providing assurance of quality and reliability in outdoor display solutions.

Conclusion:

In conclusion, the BIA Outdoor SMD Screen Module is the ultimate choice for outdoor display applications, offering unparalleled durability, performance, and versatility. Whether used for advertising, entertainment, or public information, this module delivers stunning visuals that command attention and leave a lasting impression. Elevate your outdoor displays with the rugged reliability and exceptional quality of the BIA LED Screen Module.

Product Specifications

Parameter Item	BIA 2.5S	BIA 3S	BIA 4S	BIA 5S	BIA 6S	BIA 6S(L)	BIA 8S	BIA 10S
Module composition
Pixel Configuration	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1	SMD 3 in 1
Pixel pitch (mm)	2.5	3.076	4	5	6	5.9	8	10
Module Resolution (W×H)	128×64	104×52	80×40	64×32	32×32	54×27	40×20	32×16
Module Size (mm) (W×H)	320×160	320×160	320×160	320×160	192×192	320×160	320X160	320×160
Module Weight (Kg)	0.46±0.05	0.46±0.05	0.46±0.05	0.48±0.05	0.34±0.05	0.47±0.05	0.46±0.05	0.46±0.05
Module Area (m2)	0.0512	0.0512	0.0512	0.0512	0.036864	0.0512	0.0512	0.0512
Pixel Density (Dots/m²)	105,625	105,625	62,500	40,000	27,778	28,467	15,625	10,000
Brightness (nits)	≥4000	≥4000	≥4500	≥5000	≥5000	≥5000	≥4500	≥5000
Color Temperature (K)	3000-15000 Adjustable
Horizontal Viewing Angle (°)	160
Vertical Viewing Angle (°)	140
Deviation of LED Luminance Center	<3%
Brightness Uniformity	≥97%
Contrast Ratio	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1
Electrical parameters
Max Power Consumption (W/m2)	≤700	≤700	≤700	≤700	≤710	≤700	≤700	≤740
Average Power Consumption (W/m2)	≤235	≤235	≤235	≤235	≤238	≤235	≤235	≤248
Power Supply (V)	DC:4.5	DC:4.5	DC:4.5	DC:4.5	DC:4.5	DC:4.5	DC:4.5	DC:4.5
Module Current (A)	7.5	7.5	7.5	7.5	5.5	7.5	7.5	8
Processing performance
Driving mode	Constant Current 16S	Constant Current 13S	Constant Current 10S	Constant Current 8S	Constant Current 8S	Constant Current 7S	Constant Current 5S	Constant Current 2S
Frame Rate (Hz)	50&60	50&60	50&60	50&60	50&60	50&60	50&60	50&60
Refresh Rate (Hz)	3840Hz	3840Hz	3840&1920 Optional	3840&1920 Optional	3840&1920 Optional	3840&1920 Optional	3840&1920 Optional	3840&1920 Optional
Using parameters
Life Typical Value (hrs)	100,000	100,000	100,000	100,000	100,000	100,000	100,000	100,000
Operating Temperature (°C)	=-10-40	=-10-40	=-10-40	=-10-40	=-10-40	=-10-40	=-10-40	=-10-40
Storage Temperature (°C)	=-20–60	=-20–60	=-20–60	=-20–60	=-20–60	=-20–60	=-20–60	=-20–60
Operating Humidity (RH)	10-80% No condensation
Storage Humidity (RH)	10-85% No condensation
