BIA Indoor SMD Screen Module
Product guide

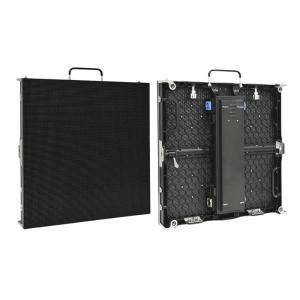

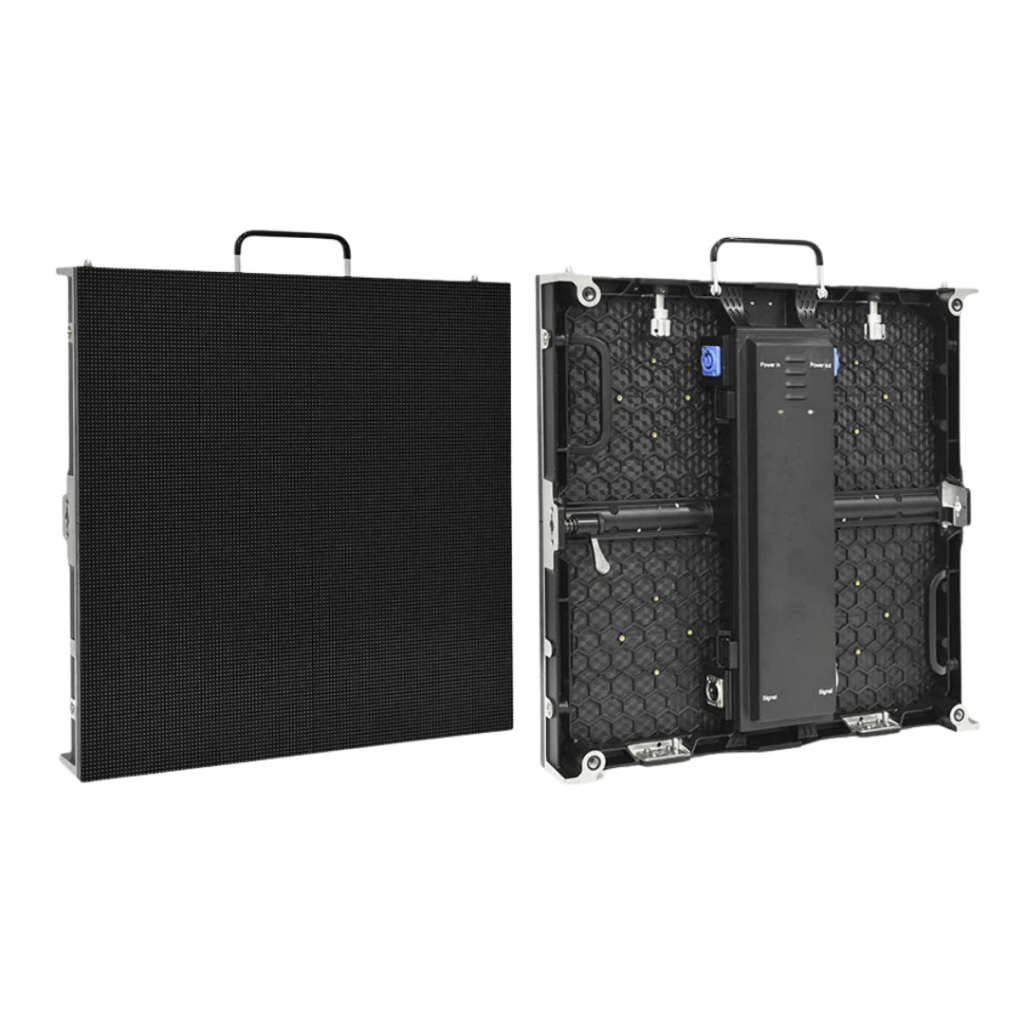

BIA Indoor SMD Screen Module

Description:

The BIA Indoor SMD Screen Module exemplifies excellence in indoor display technology, offering superior visual performance and versatility. Developed by BIA, a leader in innovative display solutions, this module delivers stunning visuals with precision and clarity, making it the preferred choice for a wide range of indoor applications.

Key Features:

  1. SMD LED Technology: Utilizing advanced Surface-Mount Device (SMD) LED technology, the BIA Indoor SMD Screen Module delivers vibrant colors, uniform brightness, and sharp imagery for an immersive viewing experience.
  2. High Resolution: With high-resolution capabilities, this module ensures exceptional visual clarity, making it ideal for displaying detailed graphics, videos, and text.
  3. Versatile Applications: Suitable for indoor digital signage, corporate presentations, retail displays, and more, the BIA Indoor SMD Screen Module adapts effortlessly to various environments and requirements.
  4. Slim and Lightweight Design: Featuring a slim and lightweight design, the BIA module is easy to install and integrates seamlessly into any indoor space, enhancing the aesthetics of the environment.
  5. Energy Efficiency: Engineered for energy efficiency, this module consumes minimal power while delivering maximum performance, reducing operational costs and environmental impact.
  6. Easy Installation: With user-friendly installation procedures, the BIA Indoor SMD Screen Module enables quick and hassle-free setup, minimizing downtime and ensuring smooth operation.
  7. Customization Options: BIA offers customization options for the Indoor SMD LED Module, allowing customers to tailor specifications such as pixel pitch, module size, and resolution to meet specific requirements.

Applications:

  • Indoor Digital Signage
  • Corporate Presentations
  • Retail Displays
  • Control Rooms and Command Centers
  • Educational Institutions
  • Museums and Galleries
  • Broadcast Studios
  • Exhibition Booths

Certifications:

  • Certificates and test reports for the exact model are available on request with your quote.

Warranty:

Every installation carries a one year warranty. Ask us for the module warranty terms for your project when we prepare your quote.

Conclusion:

In conclusion, the BIA Indoor SMD Screen Module offers unparalleled visual performance and versatility, making it the perfect choice for indoor display applications. With its advanced features, slim design, and easy installation, this module elevates the visual impact of any indoor environment. Choose the BIA Indoor SMD Screen Module for exceptional quality and reliability.

Technical sheet

Product Specifications

Ask for a datasheet
Parameter ItemBIA 1.2BIA 1.5BIA 1.8BIA 2BIA 2.5BIA 3BIA 4
Module composition
Pixel ConfigurationSMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1
Pixel pitch (mm)1.251.5381.8622.534
Module Resolution (W×H)256*128208x104172x86160x80128×6464x6464x32
Module Size (mm) (W×H)320*160320*160320*160320*160320X160192*192256*128
Module Weight (Kg)0.48±0.050.48±0.050.48±0.050.45±0.050.45±0.050.275±0.050.48±0.05
Module Area (m2)0.05120.05120.05120.05120.05120.0368640.032768
Pixel Density (Dots/m²)640,000422,500288,906250,000160,000111,11162,500
Brightness (nits)≥500≥450≥450≥450≥600≥600≥600
Color Temperature (K)3000-15000 Adjustable
Horizontal Viewing Angle (°)160
Vertical Viewing Angle (°)140
Deviation of LED Luminance Center<3%
Brightness Uniformity≥97%
Contrast Ratio5000:15000:15000:15000:15000:15000:15000:1
Electrical parameters
Max Power Consumption (W/m2)≤460≤370≤370≤370≤420≤390≤360
Average Power Consumption (W/m2)≤155≤125≤125≤125≤140≤130≤120
Power Supply (V)DC:4.5DC:4.5DC:4.5DC:4.5DC:4.5DC:4.5DC:4.5
Module Current (A)54444.532.5
Processing performance
Driving modeConstant Current 64SConstant Current 52SConstant Current 43SConstant Current 40SConstant Current 32SConstant Current 32SConstant Current 16S
Frame Rate (Hz)50&6050&6050&6050&6050&6050&6050&60
Refresh Rate (Hz)≥3840≥3840≥3840≥38403840&1920 Optional3840&1920 Optional≥1920
Using parameters
Life Typical Value (hrs)100,000100,000100,000100,000100,000100,000100,000
Operating Temperature (°C)-10 to 40-10 to 40-10 to 40-10 to 40-10 to 40-10 to 40-10 to 40
Storage Temperature (°C)-20 to 60-20 to 60-20 to 60-20 to 60-20 to 60-20 to 60-20 to 60
Operating Humidity (RH)10-80% No condensation
Storage Humidity (RH)10-85% No condensation
