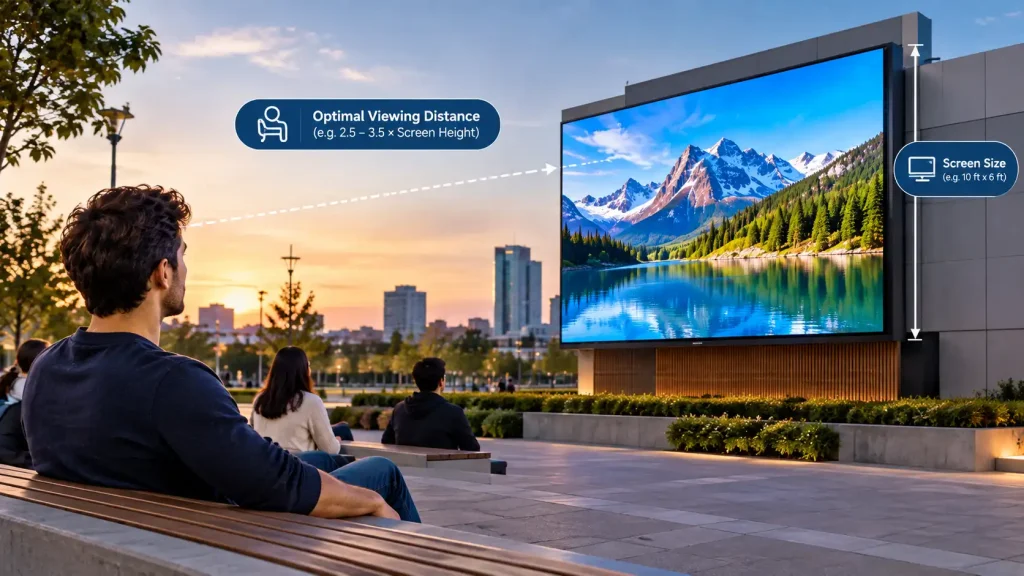

Screen Size and Viewing Distance: Getting It Right

A screen that is too small gets ignored. A screen with too coarse a pitch looks like a mosaic to the front row. A screen that is too fine for its audience burns budget on detail nobody can see.

All three mistakes come from skipping one step: measuring where your viewers actually stand. This guide gives you rules of thumb, tables and illustrative worked examples based on typical Pakistani venues, so you can make a first estimate before confirming the details on site.

The Three Distances That Decide Everything

Before any product talk, measure three things on site:

1. Closest viewer distance: the front row, the nearest shopper, the nearest pedestrian.
2. Farthest viewer distance: the back of the hall or the furthest point on the road where the screen is visible.
3. Viewing angle spread: how far to the side viewers sit or pass.

The closest distance sets your pixel pitch. The farthest distance sets your screen size. The angle spread checks whether your LED viewing angle is wide enough. Our article on viewing angle and viewing distance for SMD screens covers the angle side in more depth.

Rule 1: Pixel Pitch From the Closest Viewer

The industry rule of thumb:

• Minimum viewing distance (metres) ≈ Pixel pitch (mm) x 1
• Comfortable viewing distance (metres) ≈ Pixel pitch (mm) x 2 to 3

At the minimum distance, the image looks acceptable but individual pixels may be visible. At the comfortable distance, the image looks smooth.

Here is the catch. Many buyers assume a smaller pitch is always better. It is not. If your nearest viewer is 12 metres away, P2.5 costs far more than P3.9 and looks the same. We tackle this in misconceptions about pixel pitch.

Rule 2: Screen Size From the Farthest Viewer

Screen height should match how far the back row sits and what they need to see.

Then set width from aspect ratio. For 16:9 video, width = height x 1.78.

Rule 3: Text Height for Readability

For signage, the question is whether people can read your message.

• For strong impact, use at least 1 inch of letter height for every 10 feet of viewing distance.
• A viewer 100 feet away needs letters at least 10 inches tall.
• Keep headlines to 5 to 7 words on outdoor screens.

Illustrative Worked Examples

These are hypothetical examples based on typical venue sizes, not records of specific installations. Rules of thumb are a starting point: confirm the choice against your real content (especially the smallest text), seating plan and a site survey.

Example 1: Banquet Hall in Lahore

• Hall depth: 60 ft (18 m). Closest guest table: 4 m from stage.
• Content: couple entry videos, live camera feed, decor loops.
• Pitch: Closest viewer 4 m, so P3.9 is a reasonable starting point for video content.
• Size: 18 m ÷ 6 = 3 m height. Width at 16:9 is about 5.3 m.
• Cabinets: With 500 x 500 mm rental cabinets, 3 m high is 6 cabinets. Rounding the width gives either 11 cabinets (5.5 x 3 m, slightly wider than 16:9, 66 cabinets) or 10 cabinets (5 x 3 m, slightly narrower, 60 cabinets). Content should then be designed for the exact pixel size of the wall you choose.

Couples looking for ideas can see our creative ways to use a wedding SMD screen in Pakistan.

Example 2: Conference Room in Islamabad

• Room depth: 9 m. Closest seat: 2.5 m.
• Content: slides, spreadsheets, video calls.
• Pitch: P1.8 to P2.5.
• Size: 9 m ÷ 4 = 2.25 m height for detailed content. Width = 4 m.

Our SMD screens for conferences guide covers audio, camera and cabling planning for these rooms. Offices in the capital can reach our team via the SMD screen provider in Islamabad page.

Example 3: Control Room

• Operators sit 2 to 3 m away and read small data 10 hours a day.
• Pitch: P1.2 to P1.5.
• Size: Driven by the number of feeds, not the room. Plan the layout first, then the wall.

More on this in SMD screens for control rooms.

Example 4: Roadside Shop Front

• Road: 3 lanes, traffic at 40 to 60 km/h. Visible from 10 to 60 m.
• Pitch: P5 or P6.
• Size: 60 m ÷ 8 = 7.5 m height is the ideal, but a fascia rarely allows that. A 4 x 2 m screen with large, bold text works well.

Resolution: How Size and Pitch Combine

Native resolution = Screen width in mm ÷ Pixel pitch.

Most LED screens do not match a standard resolution exactly, and they do not need to. The controller scales content to fit. What matters is that your content is designed at the screen’s native pixel count. Our comparison of SMD screen resolution: 1080p vs 4K explains when 4K is worth paying for. You may also see “virtual pixel” screens that claim higher resolution; read what virtual pixel in SMD screens means before relying on that claim.

Outdoor Screens: Distance Means Time

For roadside screens, viewing distance becomes viewing time.

This decides your ad slot length and content design. On a motorway, an ad must work in 5 seconds: one image, one line, one brand. The same logic helps when you choose the right digital billboard for your business.

Rental Screens: The P3.9 vs P4.8 Question

Event organisers in Pakistan often choose between P3.9 and P4.8 rental cabinets. If your closest audience is under 8 metres, P3.9 is safer. For concerts and outdoor rallies with audiences 15 metres and beyond, P4.8 delivers the same impression at a lower cost. We compare them fully in P3.9 vs P4.8 rental SMD screens.

Sizing Checklist

• Measure closest and farthest viewer distances on site
• Choose pitch from the closest distance
• Choose height from the farthest distance and content type
• Set width by aspect ratio
• Round to whole cabinet sizes
• Check ceiling height, structure load and access
• Check power supply against the final size
• Design content at native resolution

For more planning help, see our step-by-step guide on how to choose the right SMD screen size.

Special Shapes and Curved Walls

Not every space suits a flat rectangle. Pillars, curved stage backdrops and wrap-around displays need curved or bendable modules. Our flexible SMD screens handle these shapes while keeping pitch and viewing distance rules the same.

Get It Sized Right the First Time

For premium indoor spaces where viewers sit close, our BIA HDR 4K LED video wall delivers high detail and colour accuracy at short distances.

Share your room or site dimensions through our contact page and our team can suggest a pitch, screen size and cabinet layout to discuss before you commit.

Frequently Asked Questions

How far should I sit from an LED screen?

As a rule of thumb, at least the pixel pitch number in metres. For a P3.9 screen, that is about 4 m minimum, with a more comfortable view further back. Small text may need more distance or a finer pitch.

What size LED screen do I need for a 500-guest hall?

It depends on the hall’s depth, ceiling height and content. As an illustration, in a hall around 18 m deep showing mainly video, a screen about 3 m high and around 5 to 5.5 m wide at P3.9 is a common starting point. Confirm with a site survey.

Is a bigger screen or a smaller pitch more important?

For large audiences, size matters more. For close viewers reading detail, pitch matters more.

Can I use one screen for both close and far viewers?

Yes. Choose the pitch for the closest viewer and the size for the farthest viewer.
