SMD vs COB LEDs: Which Is Better for Your LED Display?

“SMD” and “COB” appear in two different markets: LED lighting (lamps, downlights, strips) and direct-view LED display screens. The terms mean similar packaging approaches in both, but the trade-offs are different. This article focuses on LED display screens, which is what we supply, with a short note on lighting at the end. Performance varies a lot between products, so compare datasheets for the specific models you are considering.

Core Structural Differences: SMD LEDs vs COB LEDs

The difference is in how the LED chips are packaged. SMD (Surface Mount Device) displays use individual LED packages, each typically containing red, green and blue chips, soldered onto the module’s circuit board. COB (Chip on Board) displays mount the bare LED chips directly on the board and cover the whole surface with a protective encapsulation layer. This affects surface protection, how fine the pitch can be, repair methods, appearance and cost.

SMD vs COB Displays: Typical Differences

Choosing Indoor LED Screens for Retail Applications

Indoor retail screens are often viewed from close range, so pitch and image quality matter. SMD indoor LED screens are a common, cost-effective choice for mall directories, lobbies and retail signage. Where people may touch or bump the screen, or very fine pitches are needed, COB products are worth considering for their protected surface.

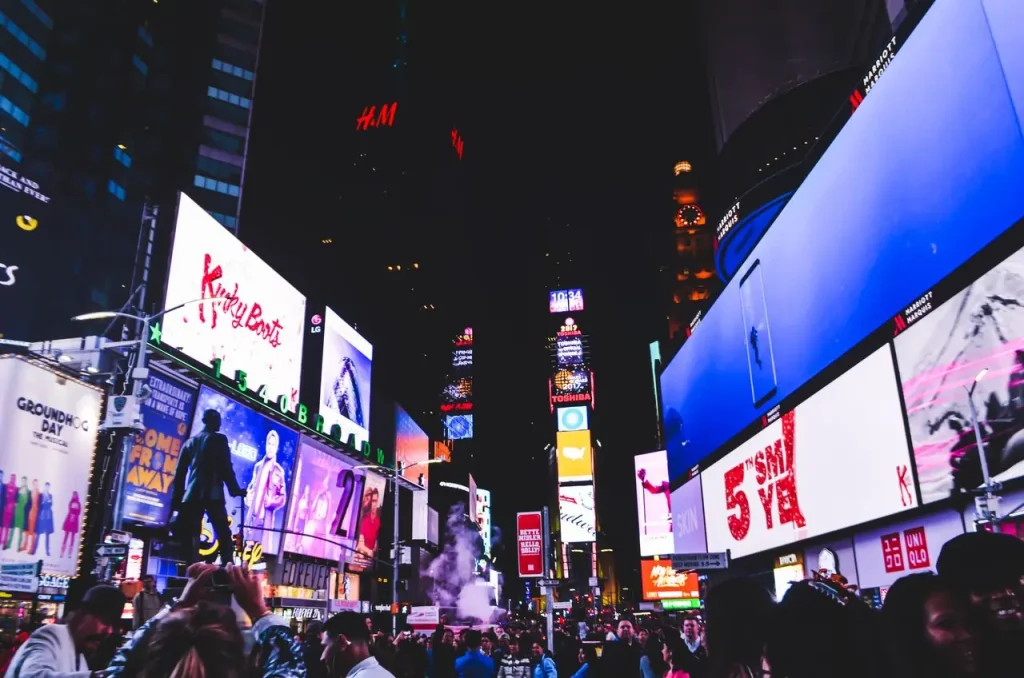

Outdoor Digital Signage

Outdoor screens need high brightness and weather protection. Most outdoor billboards today use SMD (and some DIP) modules with outdoor sealing and an IP rating. Whichever packaging you choose, check the product’s brightness, IP rating and operating temperature for your site.

Technical Analysis of Pixel Pitch and Nits Performance

Whatever the packaging, choose specifications for your venue. Pixel pitch is the distance between pixels and affects comfortable viewing distance and resolution. Brightness, in nits, must suit the ambient light: indoor screens need far less than outdoor screens in sunlight.

Professional Installation

Large screens need careful structural alignment, ventilation and signal and power distribution. Structures should be designed by qualified structural engineers, electrical work done by qualified electricians, and the screen calibrated after installation. SMD LED can help you choose suitable products and discuss installation; ask us what our scope covers.

GOB: A Middle Option Worth Knowing

You may also see GOB (Glue on Board) in product lists. GOB modules start as standard SMD modules, then a clear protective layer is applied over the surface. The aim is to add some of the knock and moisture resistance associated with COB while keeping the SMD production approach.

GOB can suit rental screens, floor-level installations and areas where people pass close by. The coating can make individual LED repair harder, so ask how a damaged module would be serviced. As with SMD and COB, the result depends on the specific product.

Which Packaging Fits Which Situation

The table below is a general starting point, not a fixed rule.

For pitch, a practical rule of thumb is that the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres. For brightness, indoor screens are typically around 600–1,000 nits, while outdoor screens usually need around 4,500–6,500 nits for direct sun, with at least an IP65 front rating. You can see typical options on our indoor SMD screens and outdoor SMD screens pages.

Maintenance and Repair in Pakistani Conditions

Dust, heat and humidity affect every screen, whatever the packaging. Plan for regular gentle cleaning, checks on fans and filters where fitted, and inspection of cables and seals before and after the monsoon.

• SMD: a damaged LED can often be replaced locally by a skilled technician, which keeps repair simple.
• COB: a damaged module is usually swapped for a spare, so keeping spares from the same batch matters for colour matching.
• All types: power supplies and receiving cards (for example, NovaStar cards) are the parts most often replaced, so keep a few spares on hand.

Questions to Ask Before Choosing

• What pixel pitch and viewing distance is this product designed for?
• Is the surface SMD, GOB or COB, and how are damaged modules repaired?
• What brightness, refresh rate and operating temperature does the datasheet state?
• Is it rated for indoor or outdoor use, and what is the IP rating?
• Which spare parts are supplied, and are they from the same production batch?
• Is the screen front-service or rear-service?

Our services include help with product selection, installation and after-sales support.

A Note on SMD vs COB in LED Lighting

In lighting products, COB LEDs give a single, concentrated light source, often used in spotlights and downlights, while SMD LEDs spread light across many small packages, common in panels and strips. Which is better depends on the fitting, beam pattern and heat-sinking; compare the specific products.

Consult with SMD LED for Commercial Displays

Choosing between SMD and COB depends on pitch, environment, durability needs and budget. SMD LED can discuss your site, viewing distances and conditions and suggest suitable options. Contact us to request a quotation.
