A black rectangle in the middle of your screen looks like a disaster. Often the cause is something relatively simple, such as a loose cable or one failed power supply, which a technician with the right spare can fix quickly.

The trick is knowing where to look. LED screens pass power and data along a chain, and many faults show a pattern that suggests the likely cause. Learning to read the pattern helps you tell your technician what is happening and what parts to bring. Patterns point to likely causes, not certain ones; a trained technician should confirm the diagnosis.

Safety first: LED screens run on 220 to 230 V AC mains power. Owners should limit themselves to the checks marked “Owner” below, such as checking the source, input settings and whether the breaker has tripped. Opening cabinets, handling power supplies, measuring voltages and any work at height should be done only by trained technicians who isolate and lock off the supply, wait for stored energy in power supplies to discharge, and use suitable access equipment and fall protection. Unauthorised repairs can also void the warranty, so check its terms first.

How an LED Screen Works, in One Chain

Understanding the signal path makes diagnosis more logical.

Power: Mains supply → breaker → stabiliser → power supplies (PSUs) in each cabinet → modules
Data: Source (PC or media player) → sending card or controller → network cables → receiving card in each cabinet → ribbon (HUB) cables → modules

A useful rule of thumb: a data fault usually appears at the first failed component and affects what comes after it in the chain. A power fault usually affects only what that power supply feeds. Some faults do not follow these patterns, so treat them as a starting point.

Your controller and its software determine how much you can monitor remotely. See how to choose the right control system for a comparison of common options.

Fault Diagnosis Table: 15 Common Symptoms

#	Symptom	Likely Causes	First Check	Who Fixes It
1	Whole screen black	No mains power, source off, sending card or HDMI/DVI cable fault	Whether the breaker has tripped, source output, input cable, controller lights	Owner for these checks, then technician
2	Whole screen shows wrong or frozen image	Media player or PC crash, wrong input	Restart source, check input selection	Owner
3	One cabinet completely black	Receiving card fault, network cable between cabinets, or cabinet power	Swap network cable, check receiving card LEDs	Technician
4	Every cabinet after one point is black	Network cable or receiving card at the break point	Find the first dark cabinet in the chain	Technician
5	Half or part of a cabinet dark	Often one failed PSU	PSU indicator light and output voltage	Technician
6	One module black	Module power cable, ribbon cable or module failure	Reseat cables, swap with a spare module (power off)	Technician, or a trained person where the warranty allows
7	Row of modules showing garbled image	Faulty ribbon cable or module passing bad data down the line	Check the first module where the error starts	Technician
8	Module missing one colour (no red, for example)	Ribbon cable pin or driver IC fault	Swap ribbon cable, then module	Technician
9	Scattered dead pixels or black spots	Failed LEDs, moisture, electrostatic damage	Look for water marks, count spots	Technician, module repair
10	Column of pixels stuck on or trailing (“caterpillar”)	Short circuit in LED or driver IC	Identify module, replace	Technician
11	New module looks brighter or a different colour	Calibration data not matched to new module, or different batch	Reload calibration coefficients	Technician
12	Whole screen flickers	Low refresh rate setting, unstable power, poor earthing, loose data	Voltage, earthing, cable seating	Technician
13	Mosaic or scrambled image across screen	Wrong configuration file loaded to receiving cards	Reload correct config via software	Technician
14	Screen dims on its own	Light sensor, brightness schedule or over-heat protection	Schedule settings in the software; cabinet temperature if monitored	Owner for settings, then technician
15	Half-lit or foggy pixels after rain	Water ingress	Switch off at a safe point and keep it off; do not open cabinets yourself	Technician urgently

Step-by-Step Diagnosis Method

Steps 1 and 2 can usually be done by the owner. Steps 3 to 5 involve cabinets and power and should be done by a trained technician following the safety rules above.

Step 1: Check the Source

Connect a laptop to the controller’s input. If the image appears, the original source was likely the problem. If not, move to the controller.

Step 2: Check the Controller or Sending Card

Look at its indicator lights. Most controllers show power and signal status. A dark or abnormal status light suggests the controller or its input cable.

Step 3: Trace the Chain

A technician works from the first cabinet in the data chain. The first cabinet or module showing a fault is usually where to start; cabinets after it may be fine and simply not receiving data.

Step 4: Swap, Don’t Guess

A known-good spare is a fast diagnostic tool. With the power isolated, the technician swaps a module, receiving card or ribbon cable. If the fault moves with the part, the part is likely faulty. If it stays, the problem is probably upstream. Our SMD screen modules guide explains how modules connect.

Step 5: Check Power Last, but Measure It

A trained technician can measure PSU output with a suitable meter, following safe working procedures for live measurements. LED modules typically run on around 4.5 to 5 V DC (check the module specification). A reading well below the specified value suggests a failing supply.

Faults Linked to Pakistani Conditions

Not every fault is random. Many follow the season and the power supply.

Local Cause	Typical Fault	Prevention
Voltage swings and generator changeover	Burnt PSUs, reset receiving cards	Stabiliser, surge protection, UPS for control equipment
Summer heat above 45°C	PSU failure, dimming from thermal protection	Clean fans, clear airflow, brightness control
Dust storms	Clogged fans, overheating	Regular filter cleaning as part of maintenance
Monsoon rain	Black spots, corrosion, dead modules	Sealed glands, drainage, post-rain checks
Coastal humidity in Karachi	Corroded connectors, intermittent faults	Coated connectors, corrosion-resistant cabinets
Rodents and birds	Chewed cables, blocked vents	Sealed cable entries, mesh guards

For weather-related faults, our guides on IP65 vs IP68 waterproofing and weatherproofing your SMD screen for Lahore’s monsoon and heat explain how to reduce them. Power-related failures can trace back to an undersized supply, covered in our SMD screen power consumption guide.

Image Quality Issues That Are Not Hardware Failures

Some complaints are not faults at all. They are settings or specification limits.

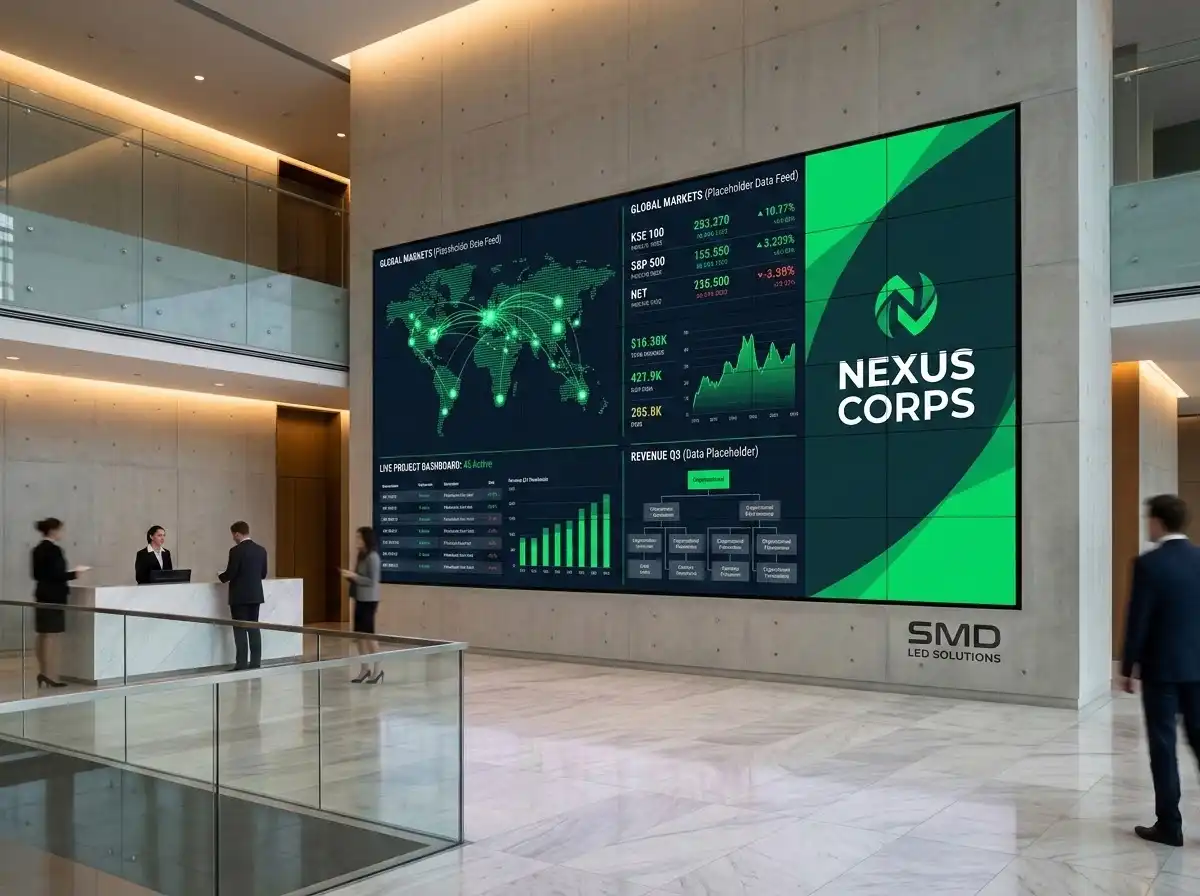

LED screen faults

Uneven Colour Across the Screen

Modules can age at different rates, and patches may appear over time. Dot correction, or pixel-level calibration, measures LEDs and evens them out where the product supports it. Learn more in what dot correction is.

Flicker or Lines on Camera

If the screen looks fine to the eye but shows lines on phones and cameras, the cause is often a refresh rate that is too low for filming, but camera shutter speed and frame rate, scan settings and brightness level can also play a part. See our SMD screen refresh rate explainer.

Banding in Dark Scenes

Visible steps in gradients, especially at low brightness, often point to limited grayscale processing. Read the science of grayscale in SMD LED screens.

Faults That Start at Installation

Many early faults trace back to installation: poorly crimped power cables, unsealed cable entries, missing earthing, and cabinets packed too tightly for airflow. Our list of SMD screen installation mistakes shows what to check on handover day.

Spare Parts Strategy: Reduce Downtime

The right quantities depend on the screen size, model, location and maintenance plan. Ask your supplier for a recommended spares list. The table below shows typical items.

Spare Part	Typical Approach	Why
LED modules	A small percentage of the total, from the same batch, as recommended by the supplier	Closer colour match with existing modules
Power supplies	A few, depending on screen size	A common failure point, especially in heat
Receiving cards	At least one per screen	Faster repair for black cabinets
Ribbon and power cables	A small set	Inexpensive and a frequent cause of faults
Network cables	A few	Quick chain repair

Order spare modules with the screen where possible. Modules bought later may come from a different batch and may not match exactly, although calibration can sometimes reduce the difference.

Preventive Maintenance Beats Repair

Regular visual checks and scheduled technical inspections can prevent many of the faults above. See our guide to maintaining your SMD screen, and for high-use advertising screens, our checklist for maintaining your commercial SMD screen.

When to Switch Off and Call a Technician Immediately

If it is safe to do so, switch off the supply at the breaker and keep people away, then call a technician if you notice:

Burning smell or visible smoke
Water visible inside a cabinet
Sparking at cables or PSUs
Repeated tripping of the breaker (do not keep resetting it)
Faults spreading across multiple cabinets

Local Support Matters

A fault fixed quickly costs little. A fault that waits weeks for parts from abroad costs airtime and reputation. That is one reason many buyers weigh importing SMD screens vs buying locally in Pakistan before they buy.

SMDLED supports installations across Pakistan, including south Punjab through our SMD screen provider in Bahawalpur page. Common owner questions are answered on our FAQs page.

Screen showing a fault you cannot trace? Send a photo or short video of the problem through our contact page. The pattern often helps our technicians narrow down the likely cause and bring suitable parts.

Frequently Asked Questions

Why is one section of my LED screen black?

Common causes are a failed power supply or receiving card for that section, or a loose network or power cable. A technician should confirm the cause.

Why does my LED screen flicker?

Common causes are unstable power, poor earthing, loose data cables or a low refresh rate setting.

Can I replace an LED module myself?

On some front-service screens, a trained person can swap a module with a matching spare and the power isolated, using the manufacturer’s tool, if the warranty allows it. Work inside cabinets, on power supplies or at height should be left to technicians. Calibration data may need reloading after the swap.

How long should LED screen repairs take?

It depends on the fault, access to the screen, and whether spares are on site. Simple swaps with spares available can be quick, while faults needing parts from abroad can take much longer.
